Cordless Drill

How do I set up and start my Cordless Drill

Quick Answer

To set up your cordless drill, fully charge the battery, fit the drill bit securely into the chuck, select the appropriate gear and torque setting, choose the rotation direction, then press the trigger to start drilling.

Tip: Always select your gear and torque settings before starting the drill.

Before You Start

Before using your cordless drill, make sure:

The battery is fully charged
The correct drill bit or screwdriver bit is fitted securely
You are wearing suitable PPE, including safety glasses
The workpiece is secure before drilling

Important: Never change the gear selector while the drill is running, as this may damage the gearbox.

How to Set Up Your Cordless Drill

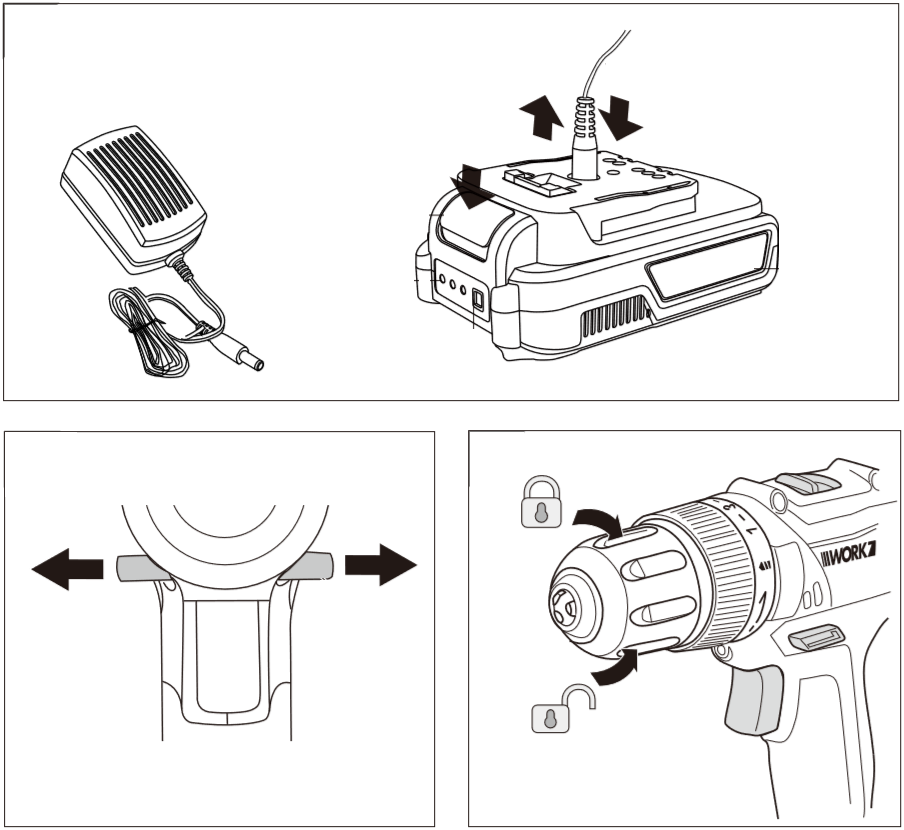

1. Charge the battery

Ensure the battery pack is fully charged before first use.

Charging times vary depending on the model. Refer to the Technical Data section of your user manual for the correct charging time.

For the D022 model:

Set the forward/reverse switch to the middle (locked) position
Remove the battery from the drill if fitted

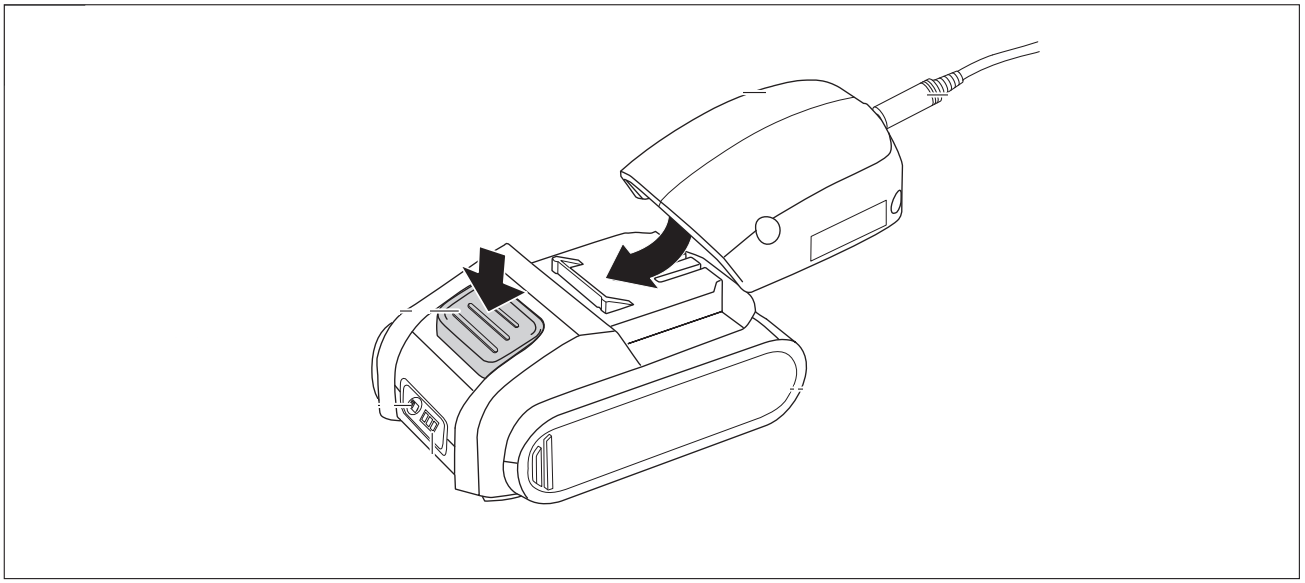

Connect the charger lead to the battery pack
Plug the charger into the mains
Monitor the battery indicator lights:
- First light: Charging
- Second light: Approximately 40% charged
- Third light: Fully charged
Charging takes approximately 60 minutes
Once charged, slide the battery back into the drill until it clicks into place

Other models may use a slot-in charger or charging cradle.

2. Fit the drill bit

Rotate the chuck anti-clockwise to open it
Insert the drill bit or screwdriver bit fully into the chuck
Rotate the chuck clockwise until the bit is securely clamped

Always check that the bit is firmly secured before use.

3. Select the gear

Your cordless drill features a two-speed gearbox.

Gear 1 (Low Speed / High Torque)

Use for:

Large drill bits
Wood
Plastic
Driving screws

Gear 2 (High Speed / Low Torque)

Use for:

Small drill bits
Metal
Faster drilling

Move the gear selector on the top of the drill:

Position 1 (towards the chuck)
Position 2 (away from the chuck)

Important: Only change gears when the drill has completely stopped.

4. Adjust the torque

Use the torque adjustment ring behind the chuck.

Lower settings are suitable for driving screws
Higher settings are suitable for drilling

Select the lowest setting that completes the task without over-tightening screws.

5. Select the rotation direction

Use the forward/reverse selector to choose:

Forward rotation for drilling and driving screws
Reverse rotation for removing screws

The centre position locks the trigger and prevents accidental operation.

6. Start the drill

Before drilling:

Check the bit is secure
Wear appropriate PPE
Ensure the workpiece is safely supported

To operate the drill:

Press the trigger
Apply gentle pressure to begin drilling

The drill features a variable-speed trigger:

Press lightly for slower speeds
Press further for higher speeds

Release the trigger to stop the drill.

Important Safety Tips

Always release the trigger before inserting or removing the battery
Never change gears while the drill is running
Ensure the drill bit is securely clamped before use
Use the correct drill bit for the material being drilled
Remove the battery before changing accessories or carrying out maintenance

Frequently Asked Questions

Why won't my cordless drill start?

Check that the battery is fully charged, correctly fitted, the forward/reverse selector is not in the centre lock position, and the trigger is being pressed.

Which gear should I use?

Use Gear 1 for screwdriving and larger drill bits, and Gear 2 for smaller drill bits and drilling into metal.

What does the torque setting do?

The torque setting controls the turning force of the drill. Lower settings help prevent over-tightening screws, while higher settings are intended for drilling.

Can I change gears while drilling?

No. Always stop the drill completely before changing between Gear 1 and Gear 2.

Why does the drill run faster when I squeeze the trigger harder?

The drill has a variable-speed trigger, allowing you to control the drilling speed by how far you press the trigger.

View Article

How do I do a battery check on my Cordless Drill

Quick Answer

If your cordless drill is not operating correctly, first check that the battery is fully charged, securely fitted, and charging correctly. Most batteries have a built-in battery level indicator that allows you to check the remaining charge.

Tip: A battery that is not fully inserted or correctly charged is one of the most common causes of a cordless drill not starting.

Before You Start

Before checking the battery:

Switch off the drill
Remove the battery if it is installed
Inspect the battery and contacts for any visible damage

Important: Only use the charger and battery supplied or recommended for your model.

How to Check Your Cordless Drill Battery

Follow these steps to confirm the battery is working correctly.

1. Check the battery charge

Ensure the battery has been fully charged.

Charging times vary depending on the model. Refer to your user manual for the recommended charging time.

2. Check the battery level

Most cordless drill batteries feature a battery level indicator.

Press the battery test button on the front of the battery
Check the indicator lights to see the remaining charge level

If the battery level is low, recharge it before use.

3. Check the battery is fully inserted

Install the battery into the drill until it locks into place.

When correctly fitted:

The battery should slide in smoothly
You should hear a distinct click when it locks

A battery that is not fully engaged may prevent the drill from operating.

4. Check the charger

While charging the battery:

Ensure the charger is connected correctly
Check that any charging indicators are operating as expected
The battery should become slightly warm during charging, which is normal

If the battery does not charge or the charger shows no signs of operation, the charger or battery may require further inspection.

If the Battery Still Isn't Working

If you have completed the checks above and the drill still does not operate:

Try another compatible battery if available
Inspect the battery and charger for signs of damage
Contact our customer service team via Live Chat or submit a support ticket for further assistance

Important Battery Tips

Always use the correct battery and charger for your model
Ensure the battery is fully locked into the drill before use
Store batteries in a cool, dry place
Recharge the battery before it becomes fully discharged where possible
Keep the battery contacts clean and free from dirt or debris

Frequently Asked Questions

How do I know if my battery is charged?

Press the battery test button to view the battery level indicator. If the charge is low, recharge the battery before use.

Why won't my battery power the drill?

Check that it is fully charged and correctly inserted. You should hear a click when the battery locks into place.

Should the battery get warm while charging?

Yes. It is normal for the battery to become slightly warm during charging.

What should I do if the charger isn't working?

Check the power supply and charger connections. If the charger still does not function, contact our customer service team for further assistance.

Can I use a different charger?

No. Always use the charger supplied with, or recommended for, your cordless drill model to ensure safe charging and optimal performance.

View Article

My Cordless Drill will no longer clamp onto the chuck

Quick Answer

If your cordless drill will no longer clamp the drill bit securely, first check that there is no dirt, debris, or damage inside the chuck. If the chuck still fails to grip the bit, it is likely that the chuck has worn out and will need to be replaced.

Unfortunately, replacement chucks are not available from us. Please contact our customer service team to discuss the next steps.

Before You Start

Before inspecting the chuck, make sure:

The drill is switched off
The battery has been removed
The drill bit has been removed from the chuck

Always:

Wear protective gloves when handling drill bits
Inspect the chuck in a well-lit area

Important: Never attempt to inspect or clean the chuck while the battery is installed.

How to Check the Chuck

Follow these steps to identify the issue.

1. Inspect the chuck

Open the chuck fully and check for:

Dirt or dust
Small pieces of debris
Damage to the chuck jaws

Any obstruction may prevent the chuck from gripping the drill bit correctly.

2. Test the chuck

Insert a suitable drill bit into the chuck and tighten it fully.

Check whether:

The bit is held securely
The bit slips when you try to pull it out by hand
The chuck tightens evenly around the bit

If the bit cannot be clamped securely, the chuck may be worn.

If the Chuck Still Won't Clamp

If there is no debris inside the chuck and it still cannot grip a drill bit, the chuck has likely reached the end of its service life.

Unfortunately, we do not supply replacement chucks.

Please contact our customer service team via Live Chat or submit a support ticket to discuss the available options.

Important Maintenance Tips

Keep the chuck clean and free from dust and debris
Always tighten the chuck securely before use
Avoid overtightening, as this can cause unnecessary wear
Remove the battery before carrying out any maintenance
Inspect the chuck regularly for signs of wear or damage

Frequently Asked Questions

Why won't my drill hold the drill bit?

The most common causes are debris inside the chuck or a worn chuck that can no longer grip the bit securely.

Can I clean the chuck?

Yes. Remove the battery first, then inspect the chuck and carefully remove any dirt or debris.

Can I replace the chuck?

Unfortunately, we do not supply replacement chucks.

What should I do if the chuck is worn out?

Please contact our customer service team to discuss the next steps and the available support options.
